Products Ceramic fireplace stoves Arta

Arta

Ceramic fireplace stoves

Arta

Description of the product:
expand roll

The stove features the primary and secondary air adjustment, the furnace is lined with fireclay enhancing the stove’s parameters and increasing the time the heat is reflected to the room after the fire is gone. The stove is equipped with a deflector, a grill and an ash tray.

Main parameters:
expand roll
110 kg Weight
6 kW Rated output
150 mm Exhaust outlet diameter
80 % Heating efficiency
0,15 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
60 m2 Heating area (m2)
846x600x390 mm Dimensions
wood of deciduous trees Fuel type
steel Material
A Energy efficiency class

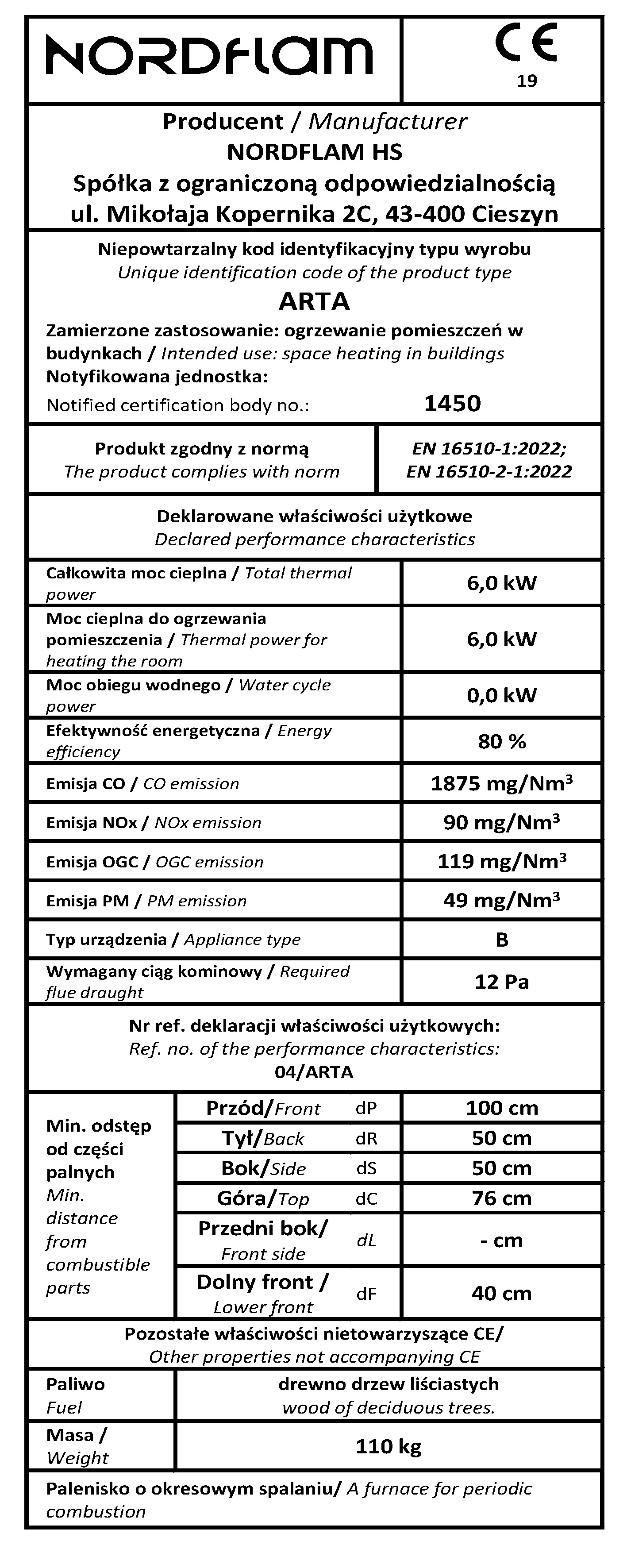

Parameters ECODESIGN
expand roll
70 % Seasonal energy efficiency at 13% O2
119 Organic gaseous carbon (OGC) emission at 13% O2
49 Particle matter (PM) emission at 13% O2
90 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double deflector
Grill
Furnace lined with fireclay - increases the temperature inside the furnace, improving its parameters and limits the hazardous gases emission into the environment..
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing
