Akron
Products Fireplace stoves Akron

Akron

Fireplace stoves

Akron

Main parameters:
expand roll
130 kg Weight
9 kW Rated output
150 mm Exhaust outlet diameter
71 % Heating efficiency
0,16 % CO emission at 13% O2
<550 °C Exhaust gas temperature °C
90 m2 Heating area (m2)
700x556x471 mm Dimensions (height, depth, width)
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
2 years Warranty
Parameters ECODESIGN
expand roll
61 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
49 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1990 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

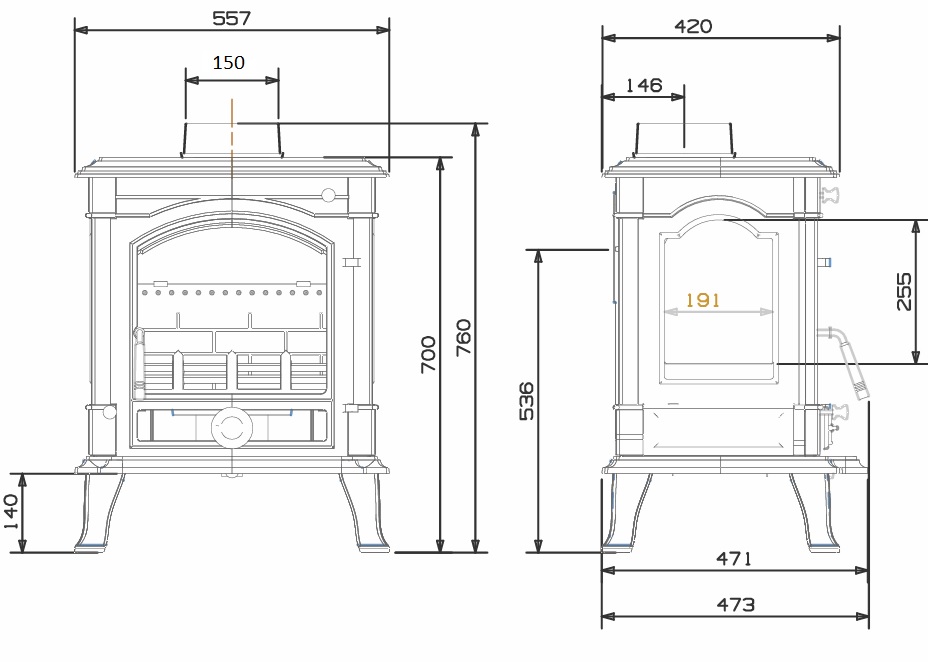

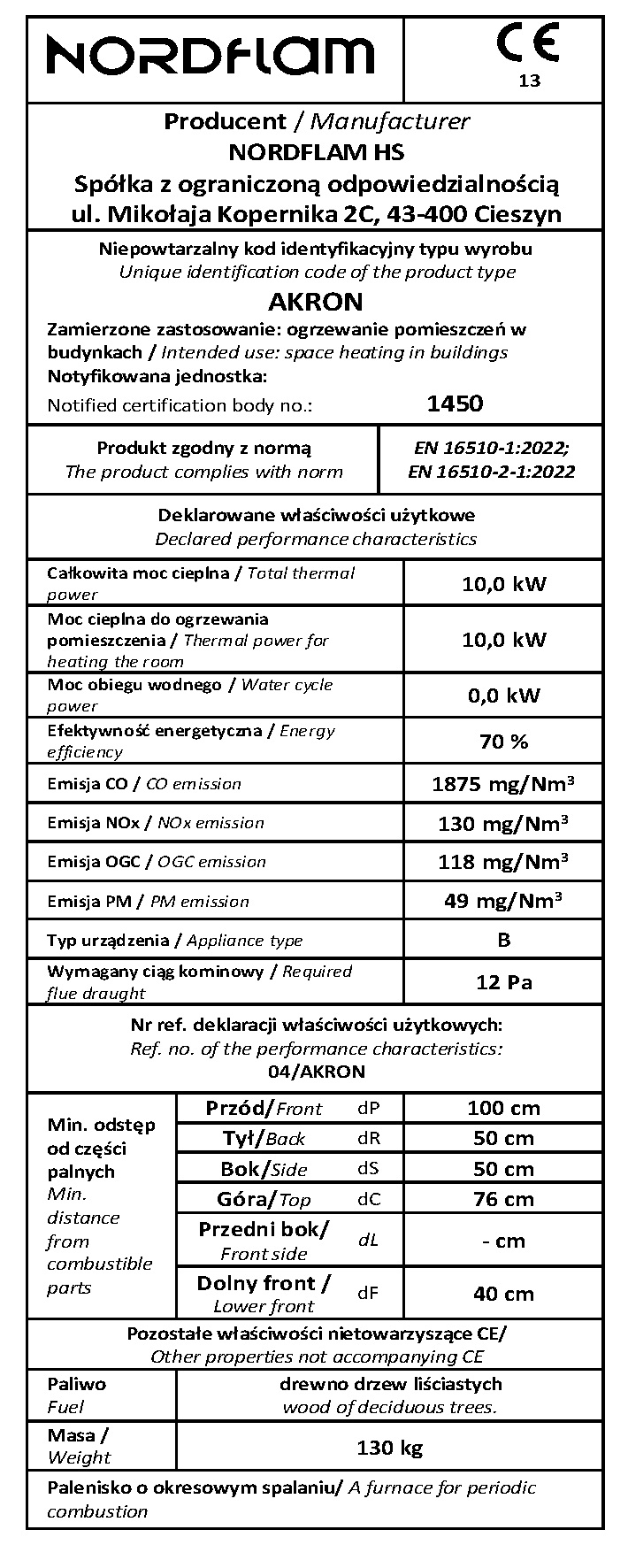

energy efficiency class ecodesign declaration mechanical drawing
