Breno
Fireplace stoves
Fireplace stoves
Breno
Description of the product:
A LaBraise cast-iron fireplace stove. It features the side loading doors with a large handle allowing for comfortable loading of large logs without opening the front doors of the stove. IT also features a cast-iron deflector extending the path the fumes travel inside the product.

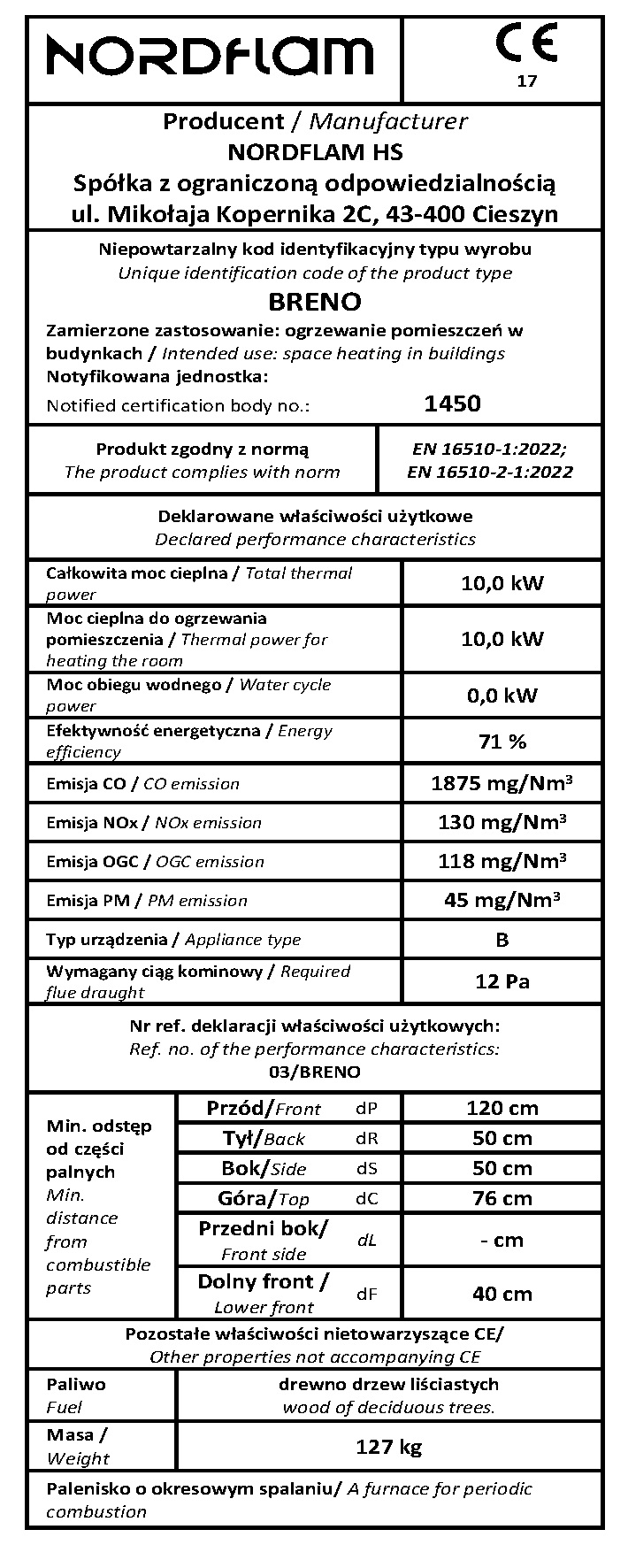

Main parameters:
127 kg
Weight
10 kW
Rated output
150 mm
Exhaust outlet diameter
70 %
Heating efficiency
0,15 %
CO emission at 13% O2
367 °C
Exhaust gas temperature °C
100 m2
Heating area (m2)
787x575x413 mm
Dimensions
wood of deciduous trees
Fuel type
cast-iron
Material
A
Energy efficiency class
Parameters ECODESIGN
60 %
Seasonal energy efficiency at 13% O2
118
Organic gaseous carbon (OGC) emission at 13% O2
49
Particle matter (PM) emission at 13% O2
130
Nitrogen oxide (NOx) emission at 13% O2
1875
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Afterburning - reduces hazardous gases emission into the environment
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C
