Akron CDP
Fireplace stoves
Fireplace stoves
Akron CDP
Description of the product:
A rustic fireplace stove. The care of its design and production is reflected in its look, that makes the stove fit classical interiors and the patina coating emphasises its rustic character. The stove is equipped with a cast-iron deflector and rotary grill. The stove have optional external air supply inlet.
Main parameters:
130 kg
Weight
9 kW
Rated output
150 mm
Exhaust outlet diameter
71 %
Heating efficiency
2000 %
CO emission at 13% O2
550 °C
Exhaust gas temperature °C
90 m2
Heating area (m2)

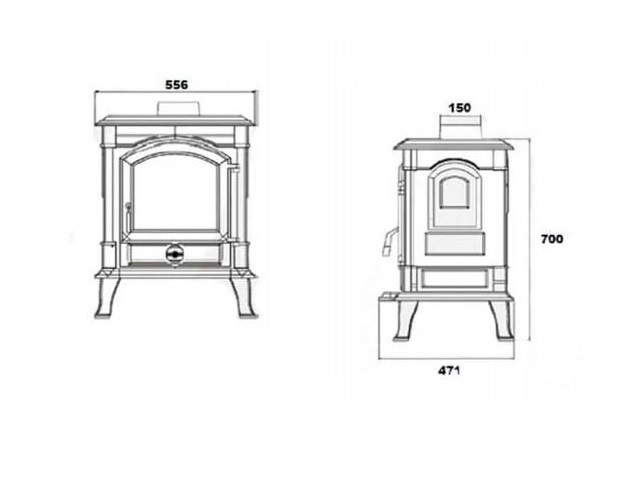

700x556x471 mm
Dimensions
woodwood of deciduous trees
Fuel type
cast-iron
Material
A
Energy efficiency class
Parameters ECODESIGN
61 %
Seasonal energy efficiency at 13% O2
120
Organic gaseous carbon (OGC) emission at 13% O2
50
Particle matter (PM) emission at 13% O2
200
Nitrogen oxide (NOx) emission at 13% O2
0,16
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C
