Asti
Products Fireplace stoves Asti

Asti

Description of the product:
expand roll

A rustic NORDflam fireplace stove. The care of its design and production is reflected in its look, that makes the stove fit classical interiors. The stove is equipped with a cast-iron deflector and rotary grill.

Main parameters:
expand roll
150 kg Weight
10 kW Rated output
150 mm Exhaust outlet diameter
70 % Heating efficiency
0,15 % CO emission at 13% O2
372 °C Exhaust gas temperature °C
100 m2 Heating area (m2)

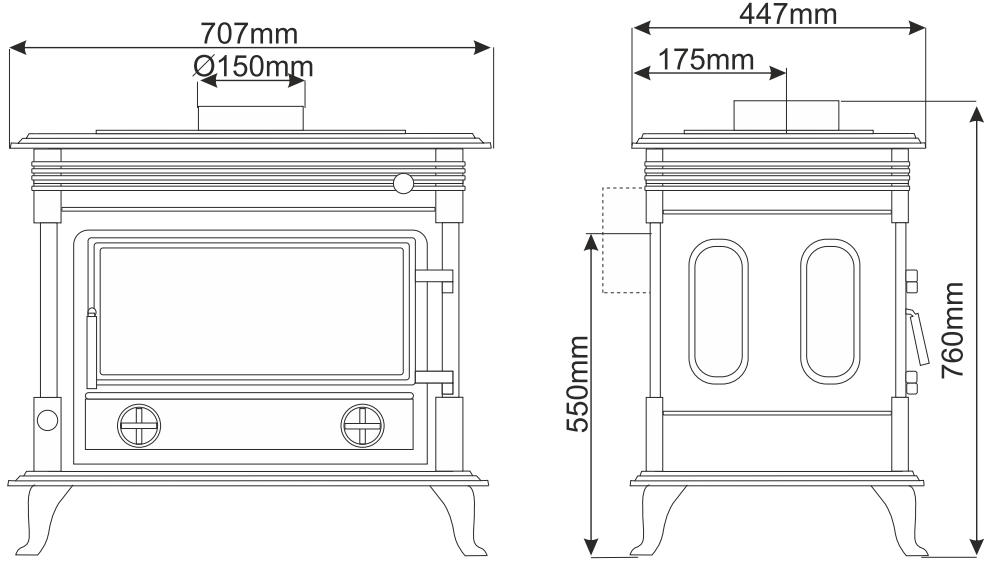

760x707x447 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
Parameters ECODESIGN
expand roll
60 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
49 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

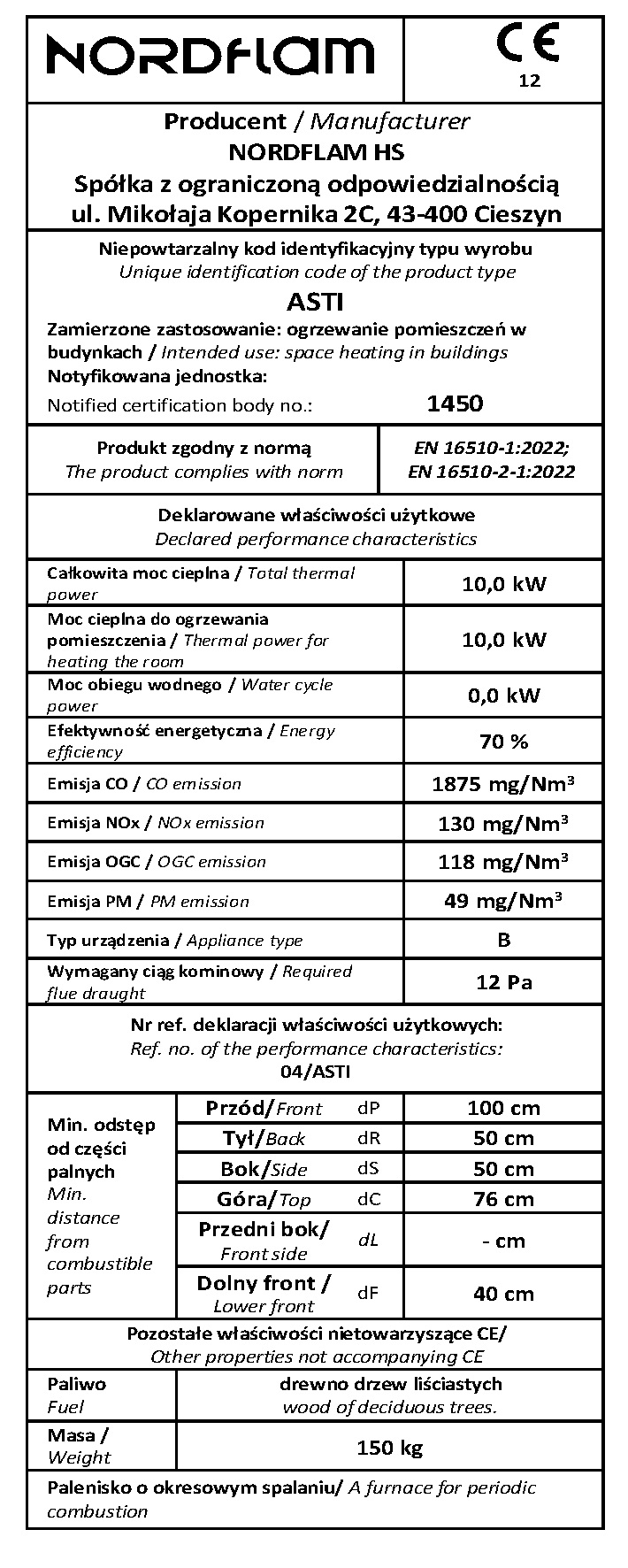

energy efficiency class mechanical drawing ecodesign declaration
