Arica
Fireplace stoves
Fireplace stoves
Arica
Main parameters:
140 kg
Weight
11 kW
Rated output
150 mm
Exhaust outlet diameter
75 %
Heating efficiency
0,15 %
CO emission at 13% O2
<550 °C
Exhaust gas temperature °C
110 m2
Heating area (m2)

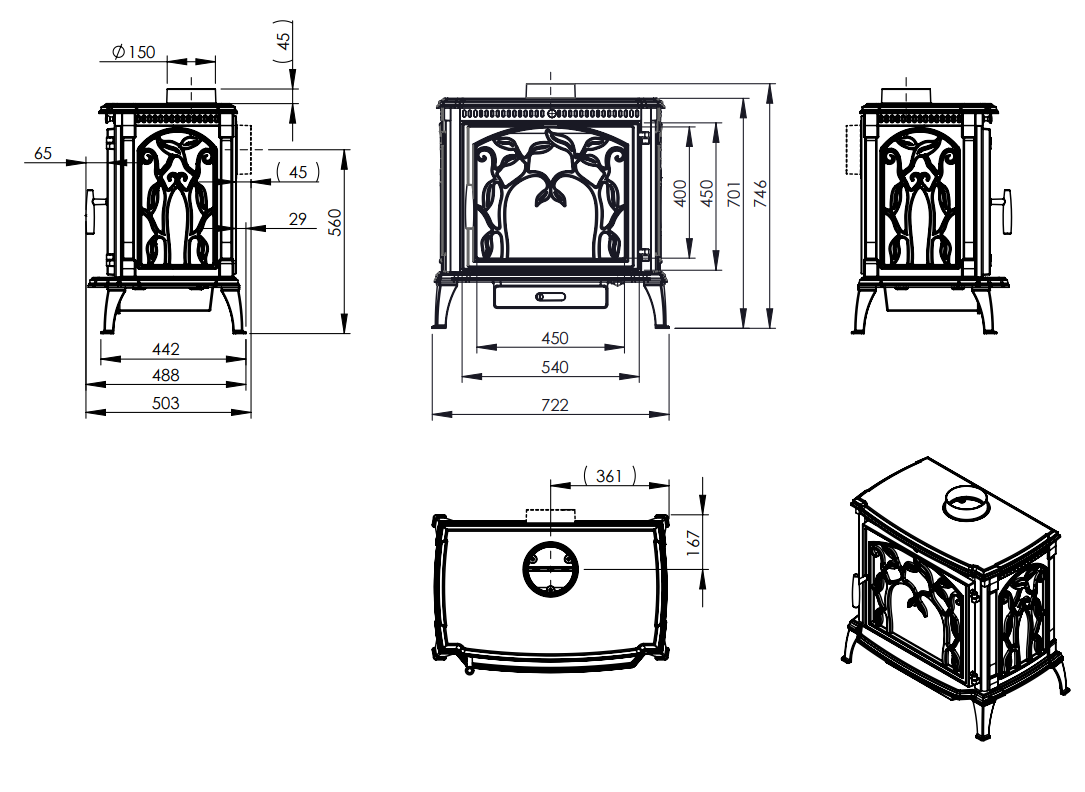

746x722x503 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
cast-iron
Material
A
Energy efficiency class
2 years
Warranty
Parameters ECODESIGN
65 %
Seasonal energy efficiency at 13% O2
118
Organic gaseous carbon (OGC) emission at 13% O2
24
Particle matter (PM) emission at 13% O2
130
Nitrogen oxide (NOx) emission at 13% O2
1834
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Afterburning - reduces hazardous gases emission into the environment
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
Side glass panel - increases vision of fire.
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C
