Plato czarne
Products Fireplace stoves Plato czarne

Plato czarne

Fireplace stoves

Fireplace stoves

Plato czarne

Main parameters:
expand roll
66 kg Weight
6 kW Rated output
120 mm Exhaust outlet diameter
70 % Heating efficiency
0,15 % CO emission at 13% O2
<550 °C Exhaust gas temperature °C
60 m2 Heating area (m2)
823x438x409 mm Dimensions (height, depth, width)
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
2 years Warranty

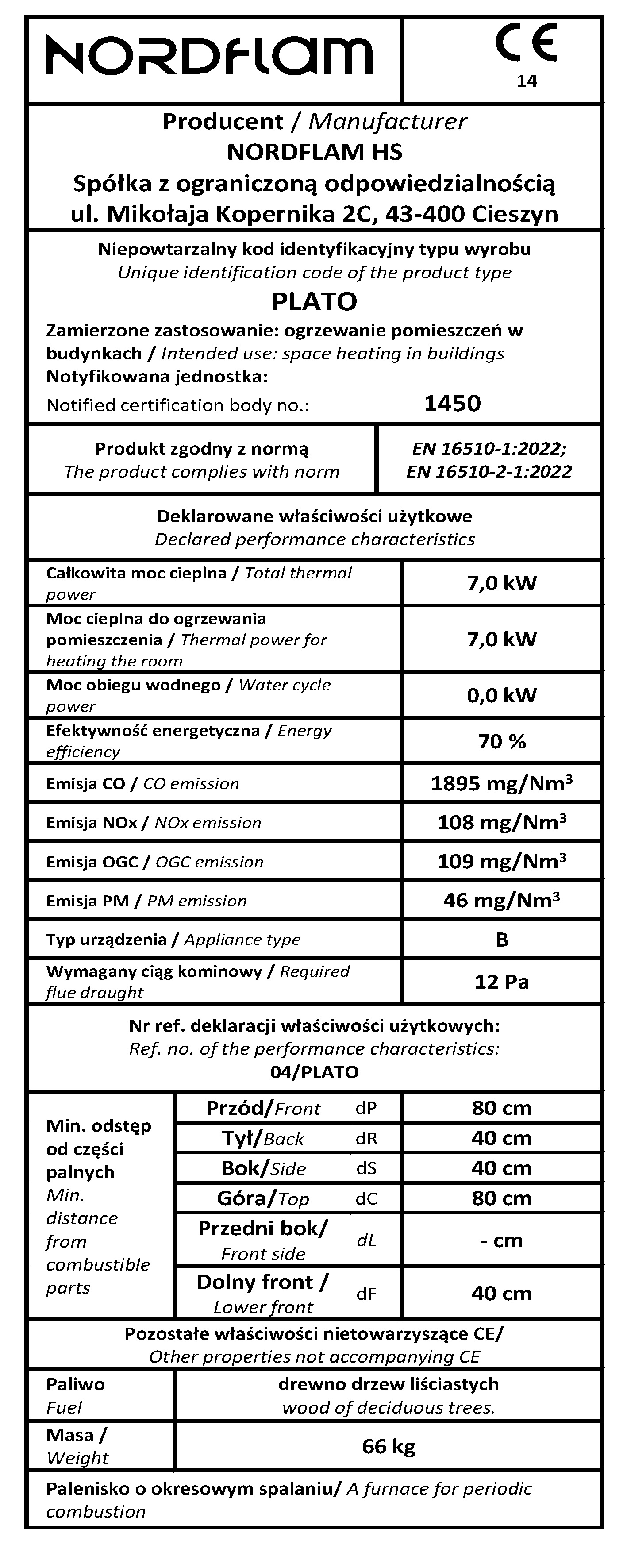

Parameters ECODESIGN
expand roll
60 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
41 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing ecodesign declaration
