Roten
Products Fireplace inserts Roten

Roten

Fireplace inserts

Roten

Description of the product:
expand roll

Steel NORDflam fireplace insert. Its facade is made of a special, very stiff and stable profile to underline the durability of the construction. Heat resistant glass ceramics with an elegant, black decor frame emphasises the modern style of the product and the furnace is lined with fireclay bricks to increase the burning parameters.


Main parameters:
expand roll
135 kg Weight
10 kW Rated output
150 mm Exhaust outlet diameter
82 % Heating efficiency
0,06 % CO emission at 13% O2
321 °C Exhaust gas temperature °C
100 m2 Heating area (m2)
899x610x470 mm Dimensions
wood of deciduous trees Fuel type
steel Material
A Energy efficiency class
150 mm External air supply standard – air inlet diameter

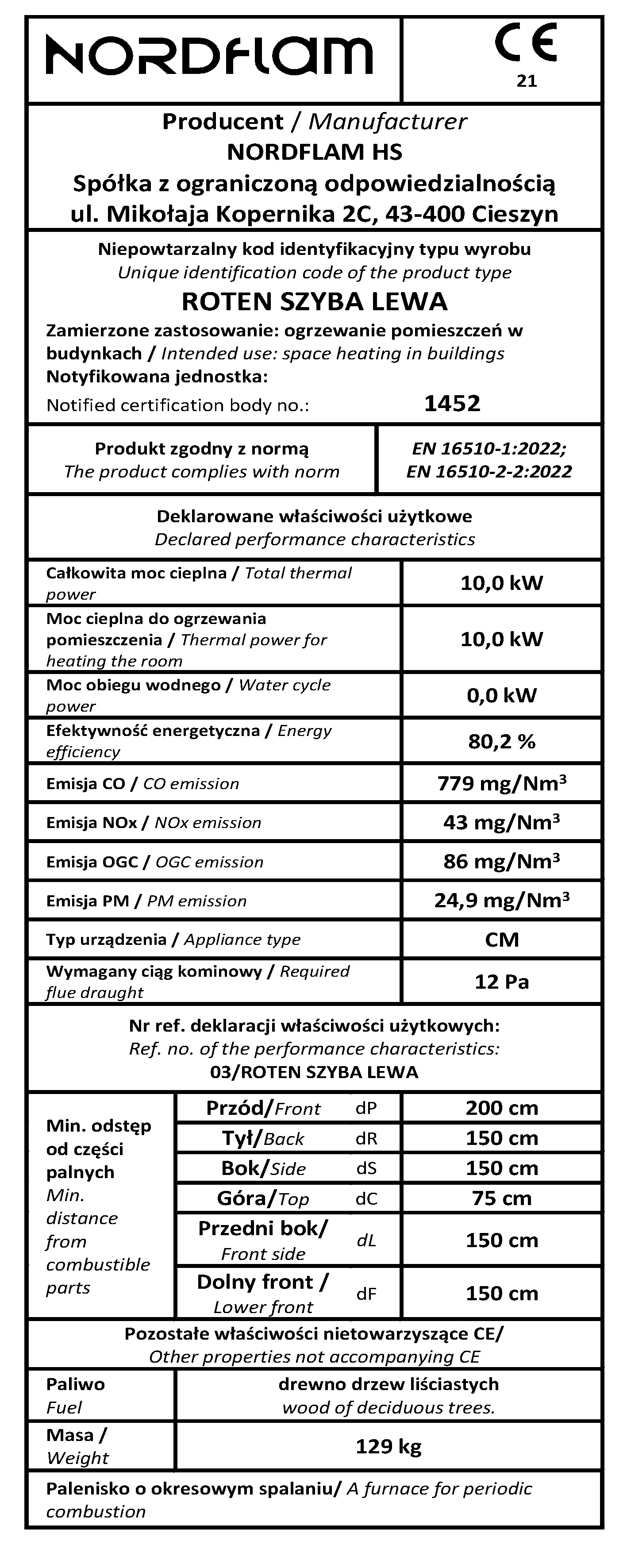

Parameters ECODESIGN
expand roll
70,2 % Seasonal energy efficiency at 13% O2
86 Organic gaseous carbon (OGC) emission at 13% O2
24,9 Particle matter (PM) emission at 13% O2
43 Nitrogen oxide (NOx) emission at 13% O2
779 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Furnace lined with fireclay - increases the temperature inside the furnace, improving its parameters and limits the hazardous gases emission into the environment..
Side glass panel - increases vision of fire.
Decor glass - glass with black, decorative frame.
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C

Download:

exploded-view drawing mechanical drawing
