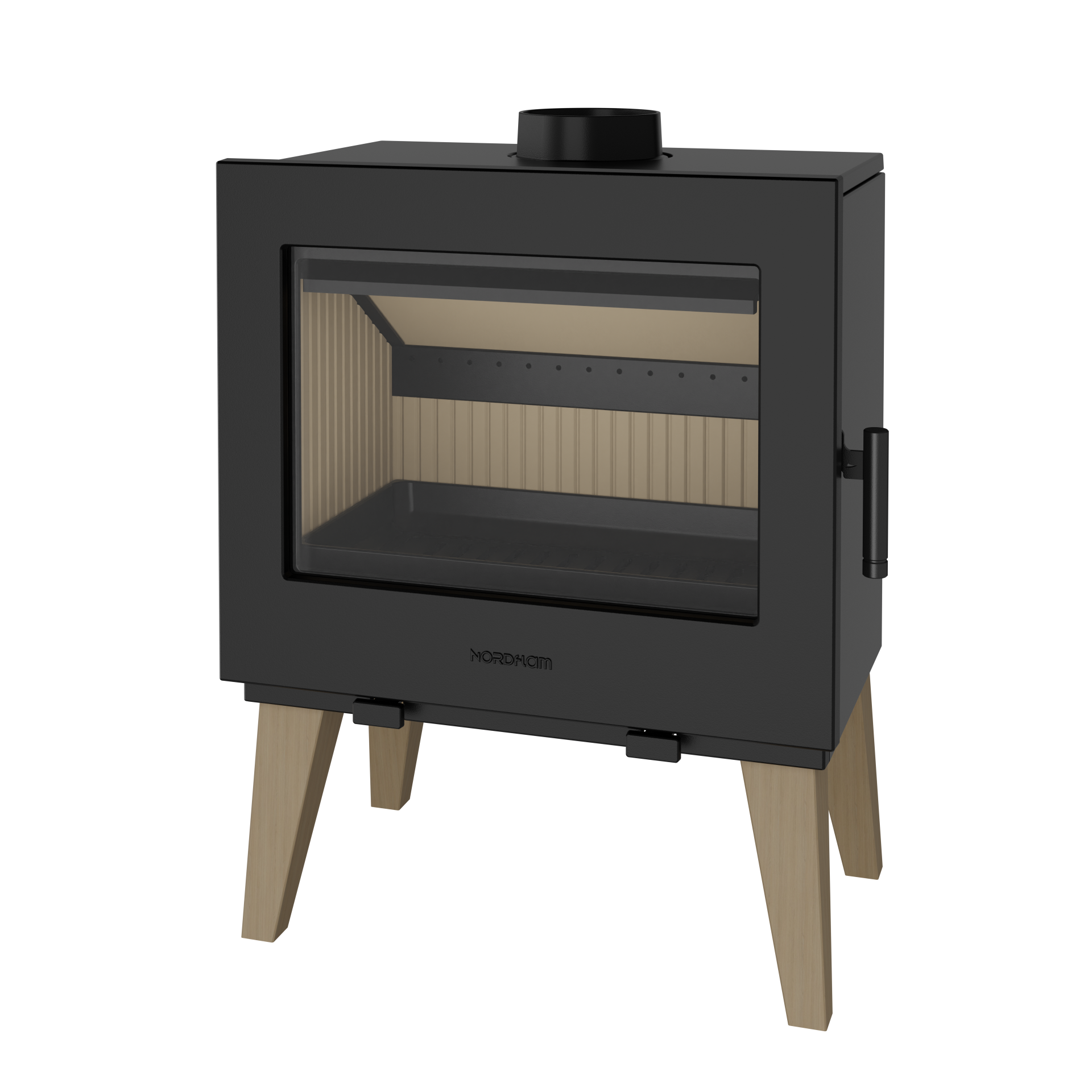

Skane
Fireplace stoves
Fireplace stoves
Skane
Main parameters:
154 kg
Weight
9 kW
Rated output
150 mm
Exhaust outlet diameter
83 %
Heating efficiency
0,05 %
CO emission at 13% O2
280 °C
Exhaust gas temperature °C
90 m2
Heating area (m2)
805x600x401 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
cast-iron, steel
Material
A+
Energy efficiency class
2 years
Warranty
100 mm
External air supply standard – air inlet diameter

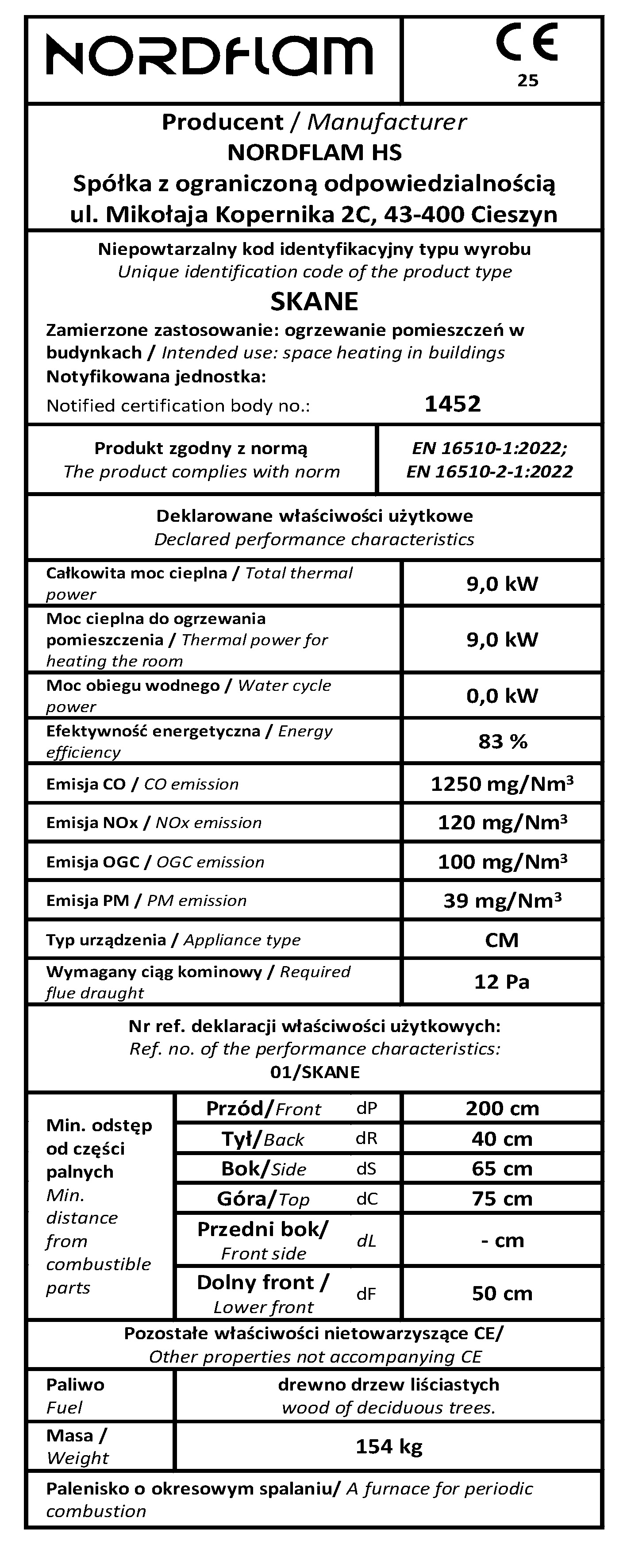

Parameters ECODESIGN
73 %
Seasonal energy efficiency at 13% O2
100
Organic gaseous carbon (OGC) emission at 13% O2
39
Particle matter (PM) emission at 13% O2
120
Nitrogen oxide (NOx) emission at 13% O2
1250
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Double deflector
Afterburning - reduces hazardous gases emission into the environment
Grill
limits the sooth build up on the inside part of the glass
Recuperation - Adapted for homes with recuperation systems
