Vera
Products Ceramic fireplace stoves Vera

Vera

Ceramic fireplace stoves

Vera

Description of the product:
expand roll

Piec posiada regulację powietrza pierwotnego i wtórnego, palenisko wyłożone jest szamotem poprawiającym parametry pieca i wydłużającym czas odbicia ciepła do pomieszczenia po wygaśnięciu ognia. Piec wyposażony jest w deflektor, grill i popielnik.

Main parameters:
expand roll
118 kg Weight
6 kW Rated output
150 mm Exhaust outlet diameter
80 % Heating efficiency
0,15 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
60 m2 Heating area (m2)
956x652x390 mm Dimensions
wood of deciduous trees Fuel type
steel Material
A Energy efficiency class
Parameters ECODESIGN
expand roll
70 % Seasonal energy efficiency at 13% O2
119 Organic gaseous carbon (OGC) emission at 13% O2
49 Particle matter (PM) emission at 13% O2
90 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
withholds the temperature up to 700 °C

Download:

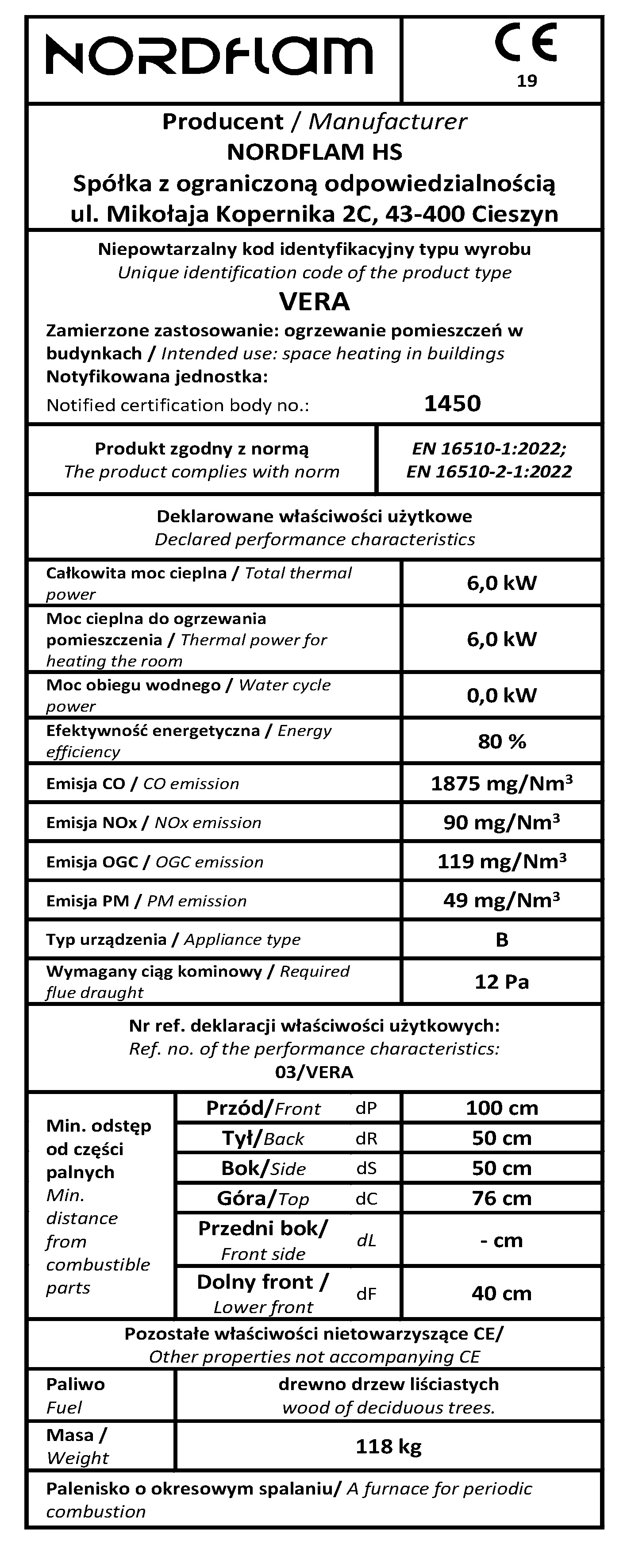

energy efficiency class mechanical drawing ecodesign declaration
