Products Fireplace inserts Corno

Corno

Fireplace inserts

Corno

Description of the product:
expand roll

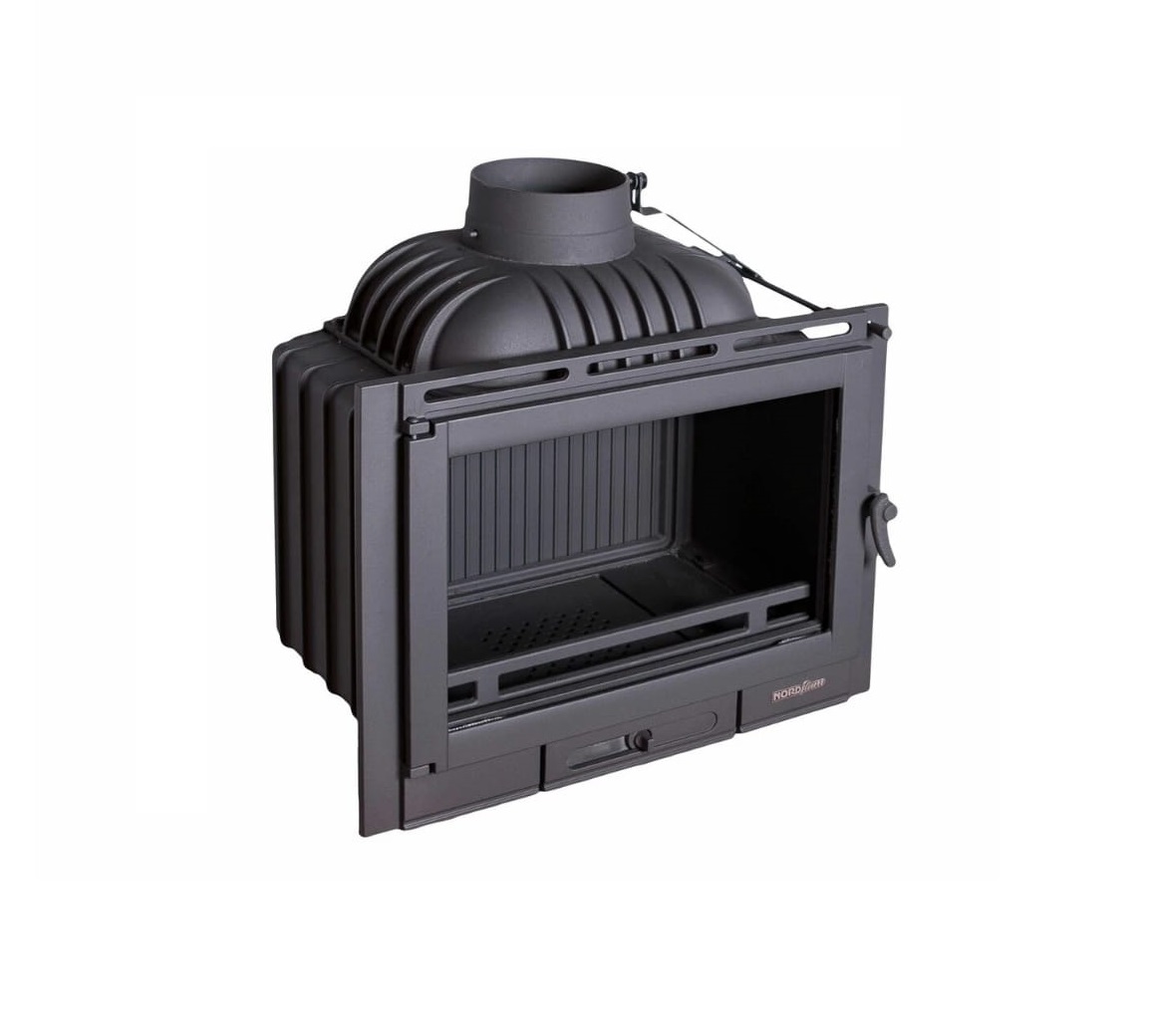

NORDflam cast-iron fireplace insert. It is a small fireplace insert made of high-quality cast iron, heat resistant glass-ceramics and air wash system, preventing the sooth build up on the internal side of the glass.

Main parameters:
expand roll
87 kg Weight
13 kW Rated output
180 mm Exhaust outlet diameter
76 % Heating efficiency
0,16 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
130 m2 Heating area (m2)
650x662x365 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class

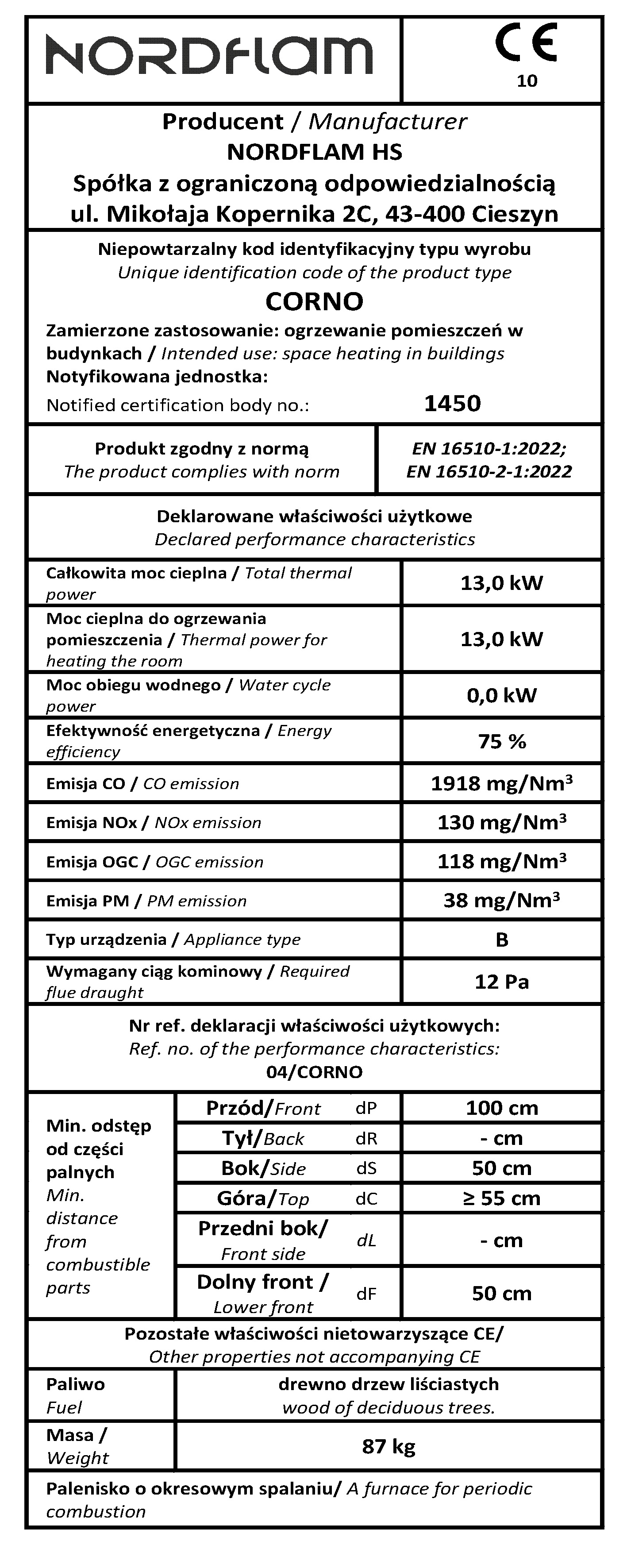

Parameters ECODESIGN
expand roll
66 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
15 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1918 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Air vent adjusts the chimney draught.
.
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing
Return
