Parma

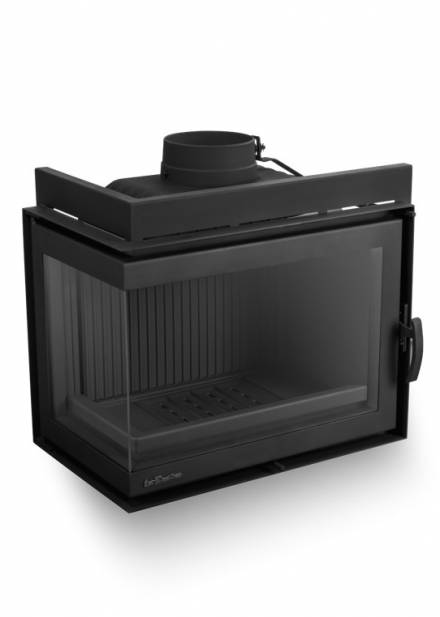

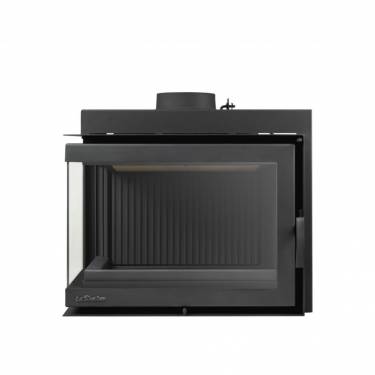

NORDflam cast-iron fireplace insert. It is a relatively small insert with side glass panel, made of high-quality cast-iron with an air wash system, preventing the build up of sooth on the internal side of the glass.
Main parameters:
82 kg
Weight
13 kW
Rated output
180 mm
Exhaust outlet diameter
68 %
Heating efficiency
0,10 %
CO emission at 13% O2
370 °C
Exhaust gas temperature °C
130 m2
Heating area (m2)
622x660x355 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
steel, cast-iron
Material
A
Energy efficiency class
2 years
Warranty
100 mm
External air supply standard – air inlet diameter
Parameters ECODESIGN
58 %
Seasonal energy efficiency at 13% O2
120
Organic gaseous carbon (OGC) emission at 13% O2
50
Particle matter (PM) emission at 13% O2
200
Nitrogen oxide (NOx) emission at 13% O2
2000
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Side glass panel - increases vision of fire.
Air vent adjusts the chimney draught.
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C
