Products Fireplace inserts Lucio


Fireplace inserts


Description of the product:
expand roll

Lucio is a NORDflam cast-iron fireplace insert. The double flue cap increases the heat-exchange surface and extends the fumes path inside the insert, that allows for more heat reflected to the interor of the room.

Main parameters:
expand roll
130 kg Weight
16 kW Rated output
180 mm Exhaust outlet diameter
73 % Heating efficiency
0,14 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
160 m2 Heating area (m2)
830x700x432 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
100 mm External air supply standard – air inlet diameter

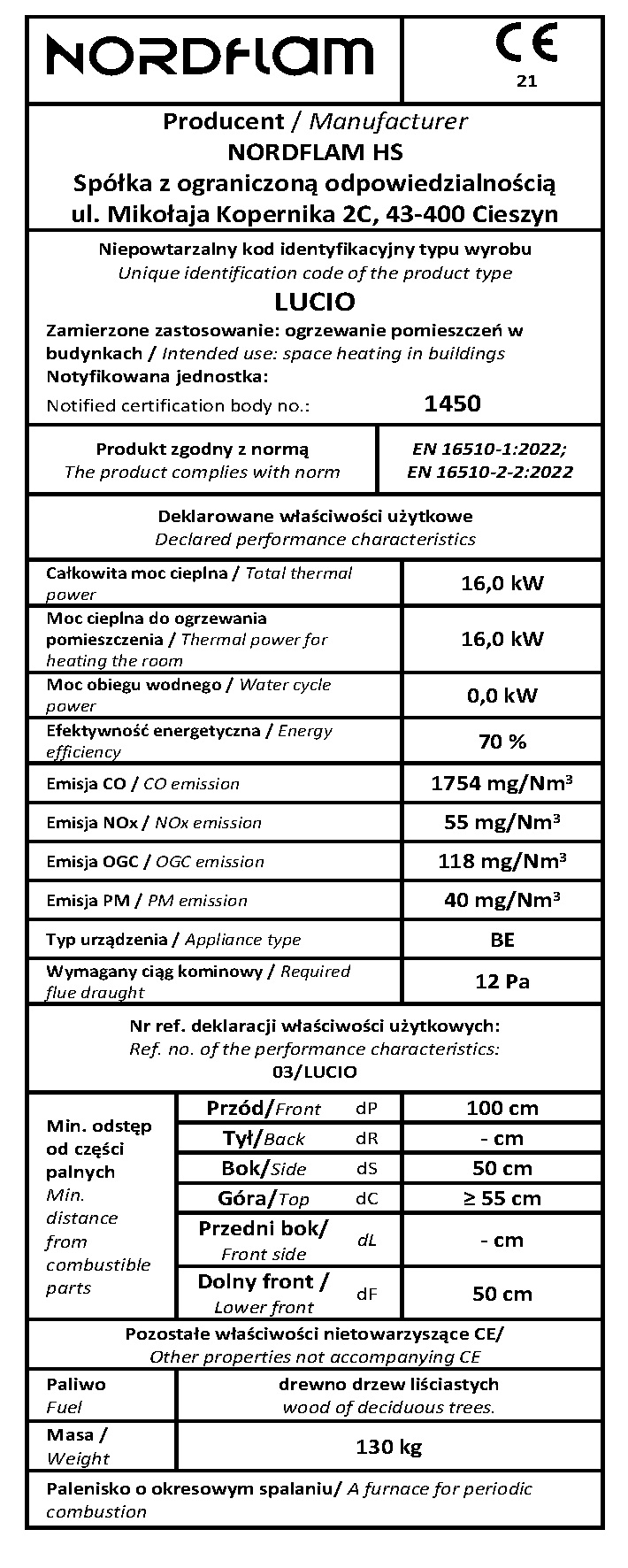

Parameters ECODESIGN
expand roll
63 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
40 Particle matter (PM) emission at 13% O2
55 Nitrogen oxide (NOx) emission at 13% O2
1754 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Air vent adjusts the chimney draught.
prevents the logs from falling out of the insert
increase the surface of heat emission into the room.
withholds the temperature up to 700 °C


energy efficiency class mechanical drawing ecodesign declaration
