Description of the product:
expand roll

TORN line is a series of NORDflam steel/cast-iron fireplace inserts with single, straight glass ceramics or side glass panels, with a stylish, black decor frame on the glass. The inserts with rated output of 14 kW are ready to be connected to the External air supply (CDP) system that makes it ideal for energy-saving houses and apartments. Sleek, steel facade, air wash system and black decor frame are only a few advantages of this modern product, ideally fitting contemporary interiors and houses. TORN line of inserts are products that fit every modern interior and offer functionality and stylish design. It heats up the atmosphere and make the insert radiate warmth and light of a family. The TORN inserts meet the requirements of the ECODESIGN.

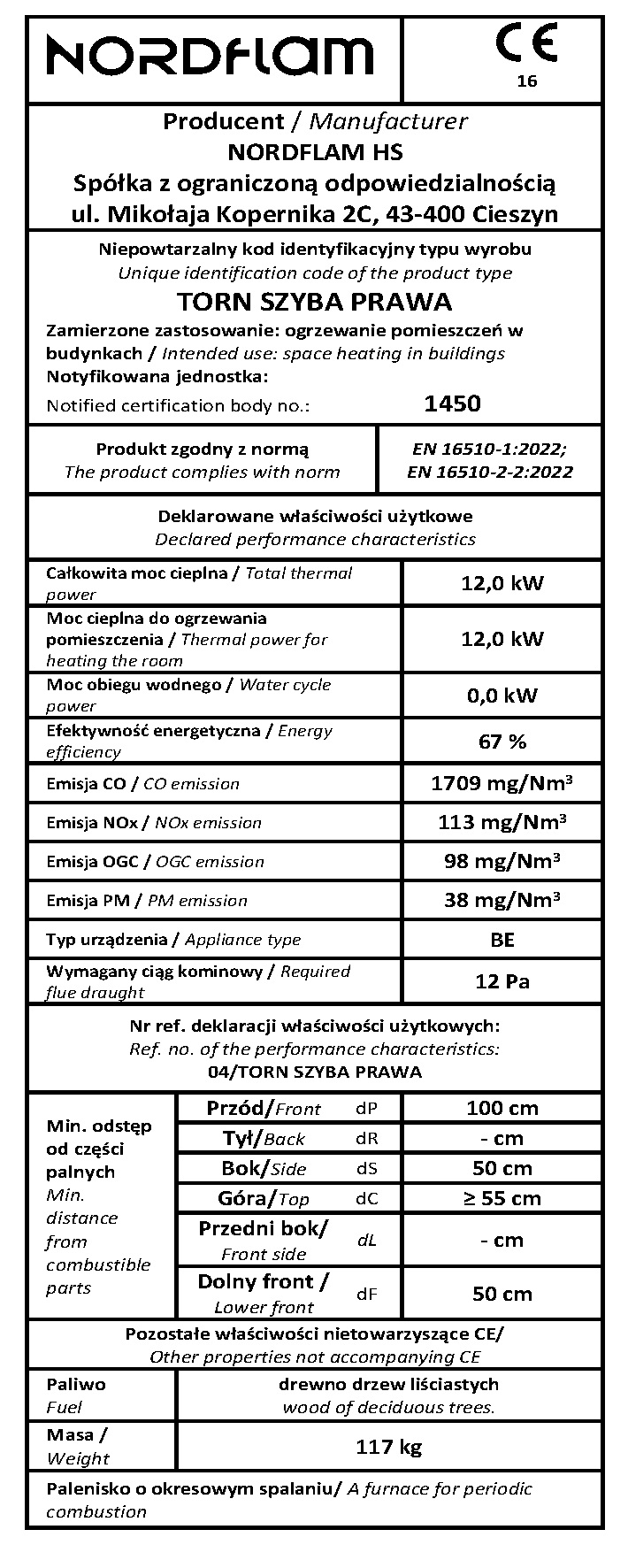

Main parameters:
expand roll
117 kg Weight
12 kW Rated output
180 mm Exhaust outlet diameter
67 % Heating efficiency
0,13 % CO emission at 13% O2
370 °C Exhaust gas temperature °C
120 m2 Heating area (m2)
715x685x477 mm Dimensions
wood of deciduous trees Fuel type
steel, cast-iron Material
A Energy efficiency class
100 mm External air supply standard – air inlet diameter
Parameters ECODESIGN
expand roll
57 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
41 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1625 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Side glass panel - increases vision of fire.
Decor glass - glass with black, decorative frame.
Air vent adjusts the chimney draught.
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing ecodesign declaration
