Marsala
Fireplace stoves
Fireplace stoves
Marsala
Main parameters:
114,5 kg
Weight
9,5 kW
Rated output
150 mm
Exhaust outlet diameter
79,2 %
Heating efficiency
0,11% %
CO emission at 13% O2
<550 °C
Exhaust gas temperature °C
95 m2
Heating area (m2)
861x632x447 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
steel
Material
A
Energy efficiency class
2 years
Warranty
85 mm
External air supply standard – air inlet diameter

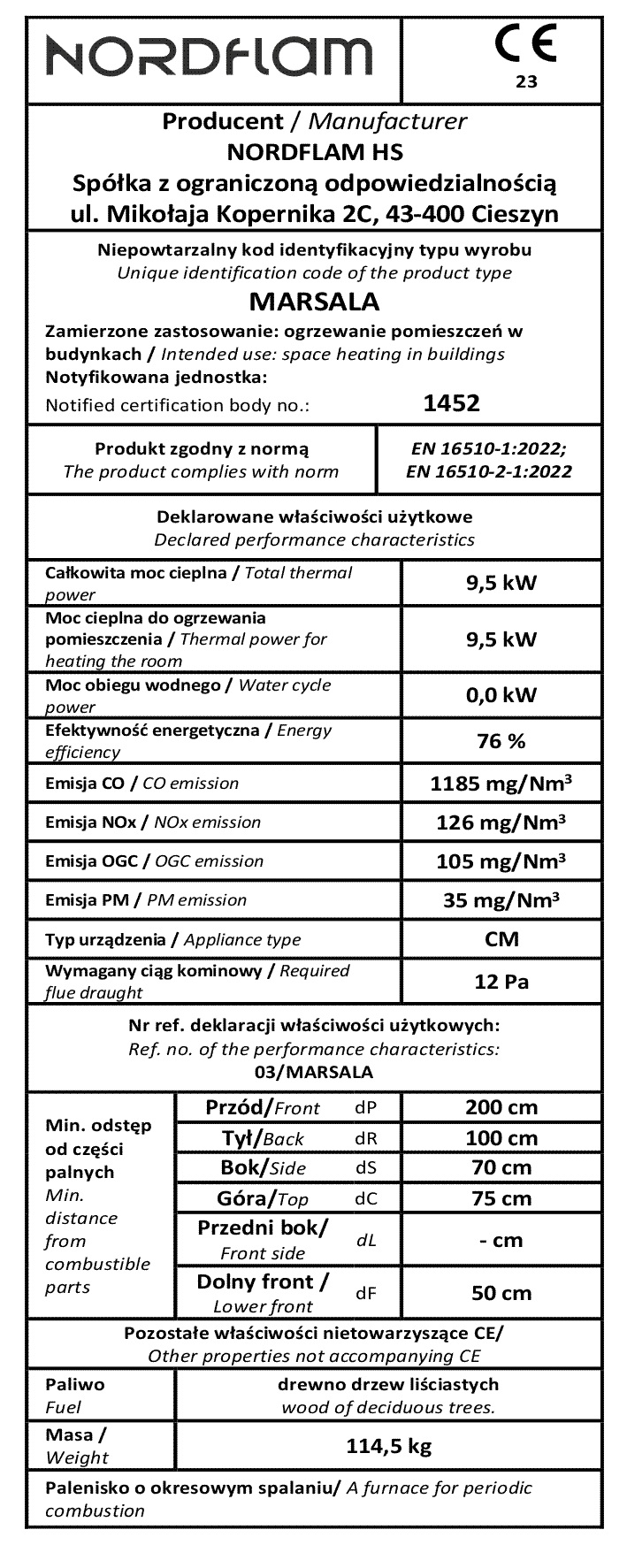

Parameters ECODESIGN
69,2% %
Seasonal energy efficiency at 13% O2
<120
Organic gaseous carbon (OGC) emission at 13% O2
< 40
Particle matter (PM) emission at 13% O2
< 200
Nitrogen oxide (NOx) emission at 13% O2
< 1500
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Grill
Side glass panel - increases vision of fire.
prevents the logs from falling out of the insert
Recuperation - Adapted for homes with recuperation systems
