Description of the product:
expand roll

The stove is a mixture of steel and cast-iron such as top cover place, upper doors and the grill. The stove is equipped with primary and secondary air supply adjustment. The furnace is lined with fireclay bricks and the upper doors feature a glass pane

Main parameters:
expand roll
75 kg Weight
5,4 kW Rated output
120 mm Exhaust outlet diameter
81,4 % Heating efficiency
0,0992 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
54 m2 Heating area (m2)
900x490x440 mm Dimensions
wood of deciduous trees Fuel type
steel, cast-iron Material
A Energy efficiency class

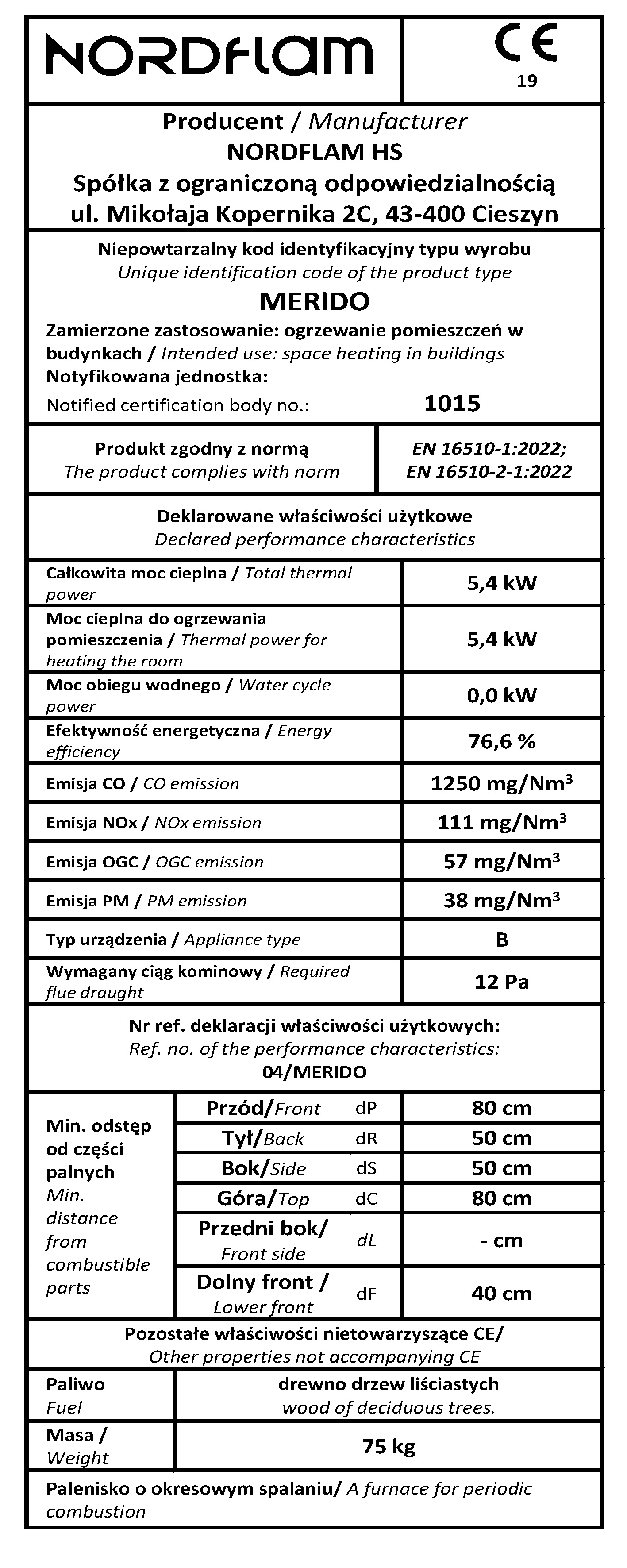

Parameters ECODESIGN
expand roll
73 % Seasonal energy efficiency at 13% O2
57 Organic gaseous carbon (OGC) emission at 13% O2
38 Particle matter (PM) emission at 13% O2
111 Nitrogen oxide (NOx) emission at 13% O2
1240 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Furnace lined with fireclay - increases the temperature inside the furnace, improving its parameters and limits the hazardous gases emission into the environment..
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

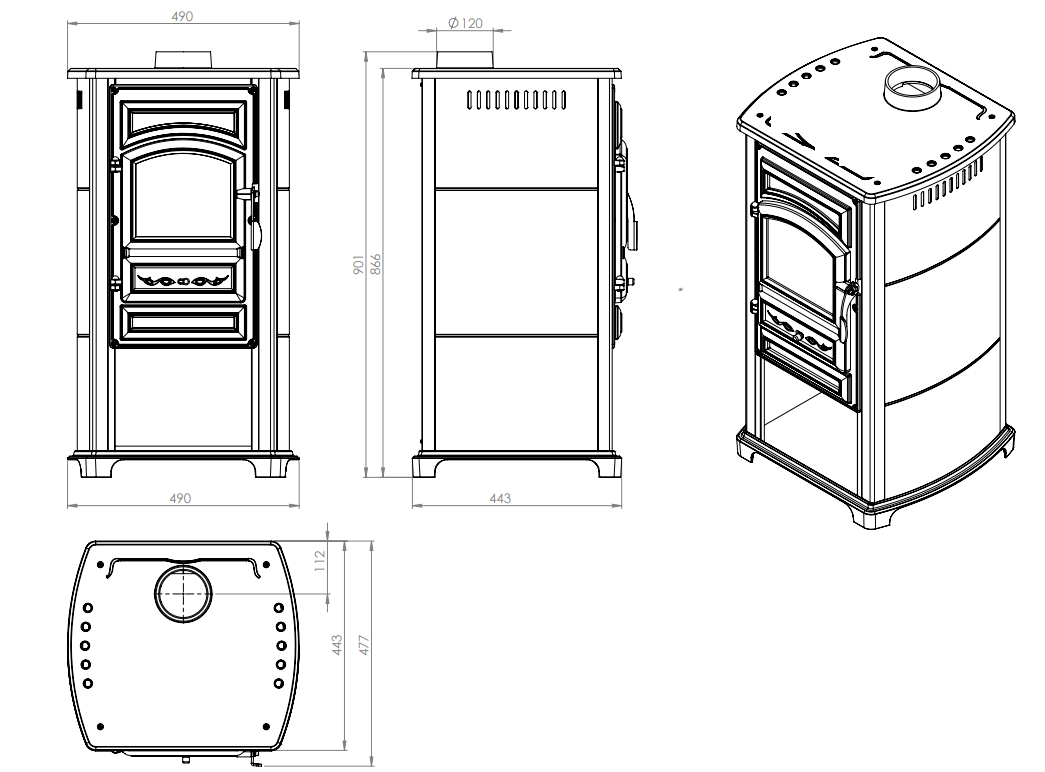

mechanical drawing
