Pillar
Main parameters:
110 kg
Weight
5,7 kW
Rated output
120 mm
Exhaust outlet diameter
81,9 %
Heating efficiency
290 °C
Exhaust gas temperature °C
57 m2
Heating area (m2)
767x420x427 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
cast-iron
Material
A+
Energy efficiency class
2 years
Warranty
100 mm
External air supply standard – air inlet diameter
Parameters ECODESIGN
71,9 %
Seasonal energy efficiency at 13% O2
80
Organic gaseous carbon (OGC) emission at 13% O2
32
Particle matter (PM) emission at 13% O2
120
Nitrogen oxide (NOx) emission at 13% O2
1100
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double deflector
Afterburning - reduces hazardous gases emission into the environment
Grill
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C
Recuperation - Adapted for homes with recuperation systems
Download:
declaration of performance and conformity
energy effiency class
manual
mechanical drawing
product sheet

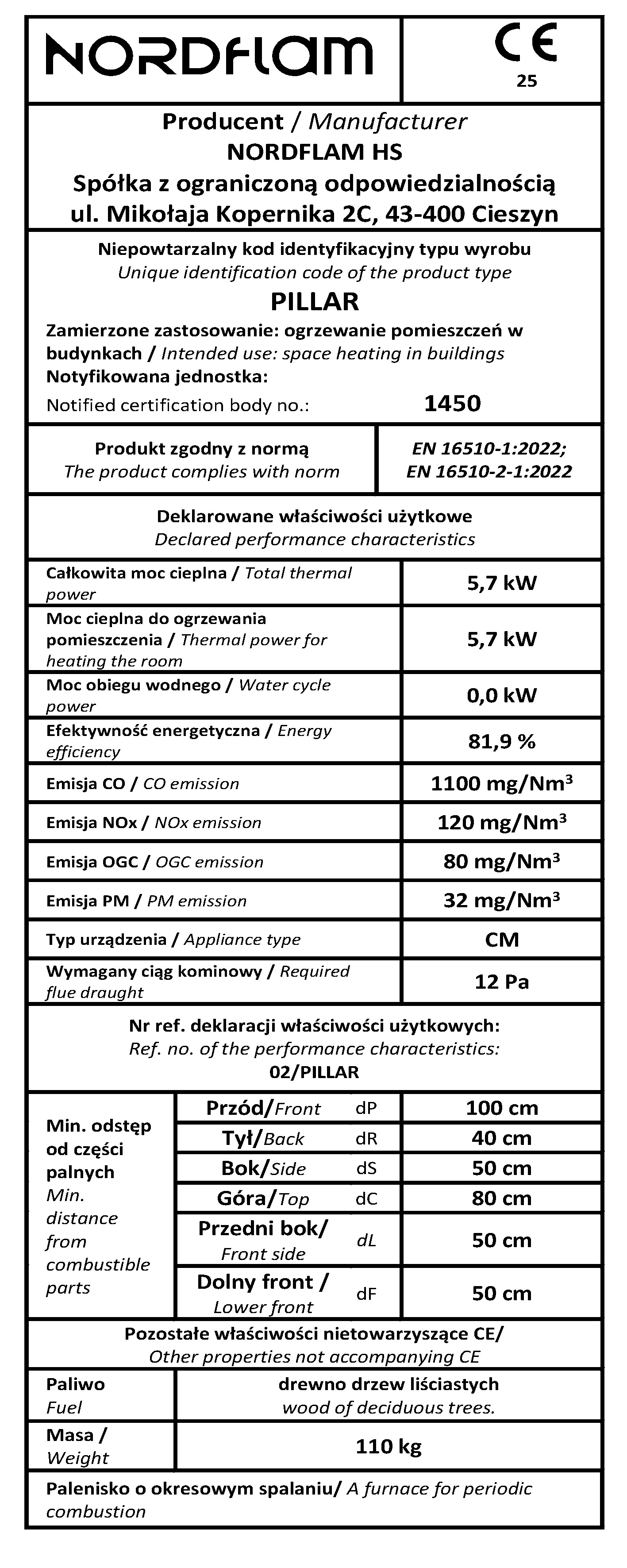

rating plate
technical data
