Palestro patyna
Products Fireplace stoves Palestro patyna

Palestro patyna

Fireplace stoves

Fireplace stoves

Palestro patyna

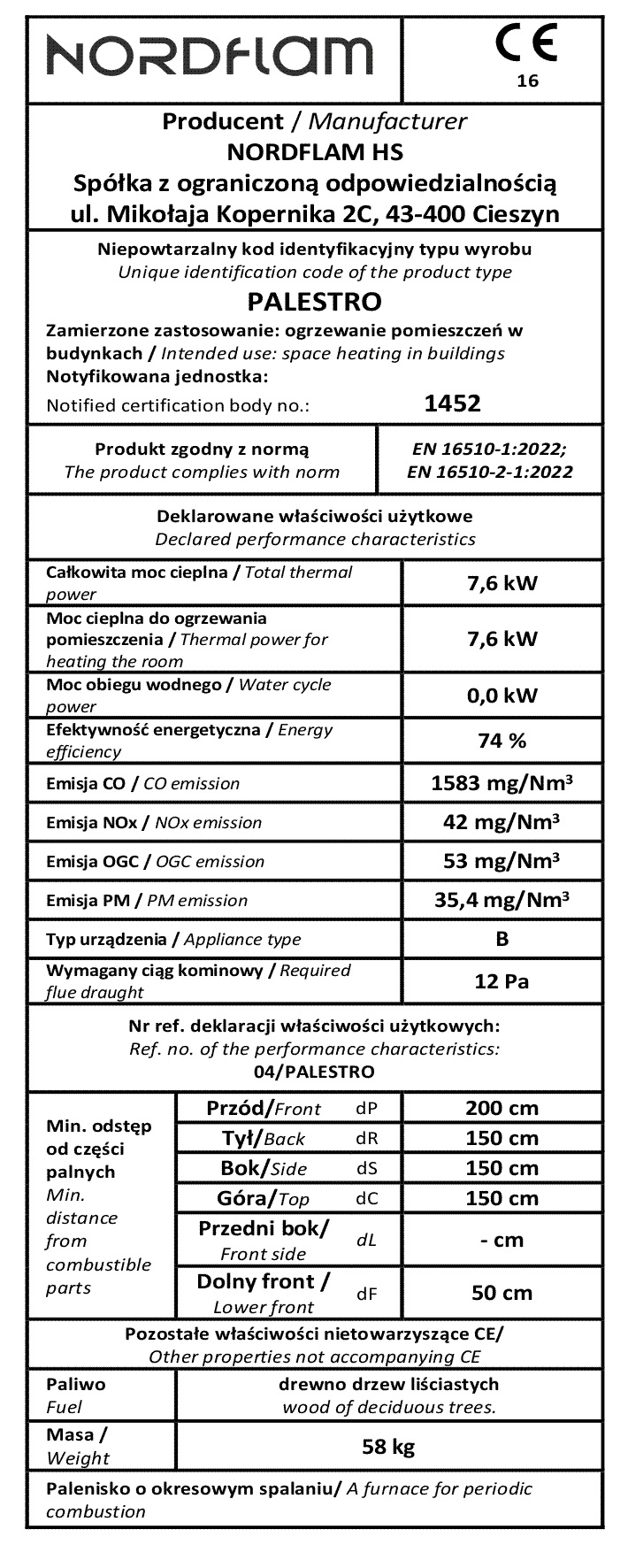

Main parameters:
expand roll
58 kg Weight
7,6 kW Rated output
130 mm Exhaust outlet diameter
74 % Heating efficiency
0,14 % CO emission at 13% O2
<550 °C Exhaust gas temperature °C
76 m2 Heating area (m2)
658x440x440 mm Dimensions (height, depth, width)
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
2 years Warranty
Parameters ECODESIGN
expand roll
64,8 % Seasonal energy efficiency at 13% O2
53 Organic gaseous carbon (OGC) emission at 13% O2
35,4 Particle matter (PM) emission at 13% O2
42 Nitrogen oxide (NOx) emission at 13% O2
1583 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing
