Ancona

Fireplace stoves

Ancona

Description of the product:
expand roll

A rustic NORDflam fireplace stove. The care of its design and production is reflected in its look, that makes the stove fit classical interiors. The stove is equipped with a cast-iron deflector and rotary grill.

Main parameters:
expand roll
120 kg Weight
9 kW Rated output
150 mm Exhaust outlet diameter
71 % Heating efficiency
0,15 % CO emission at 13% O2
367 °C Exhaust gas temperature °C
90 m2 Heating area (m2)
742x550x473 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
Parameters ECODESIGN
expand roll
61 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
49 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

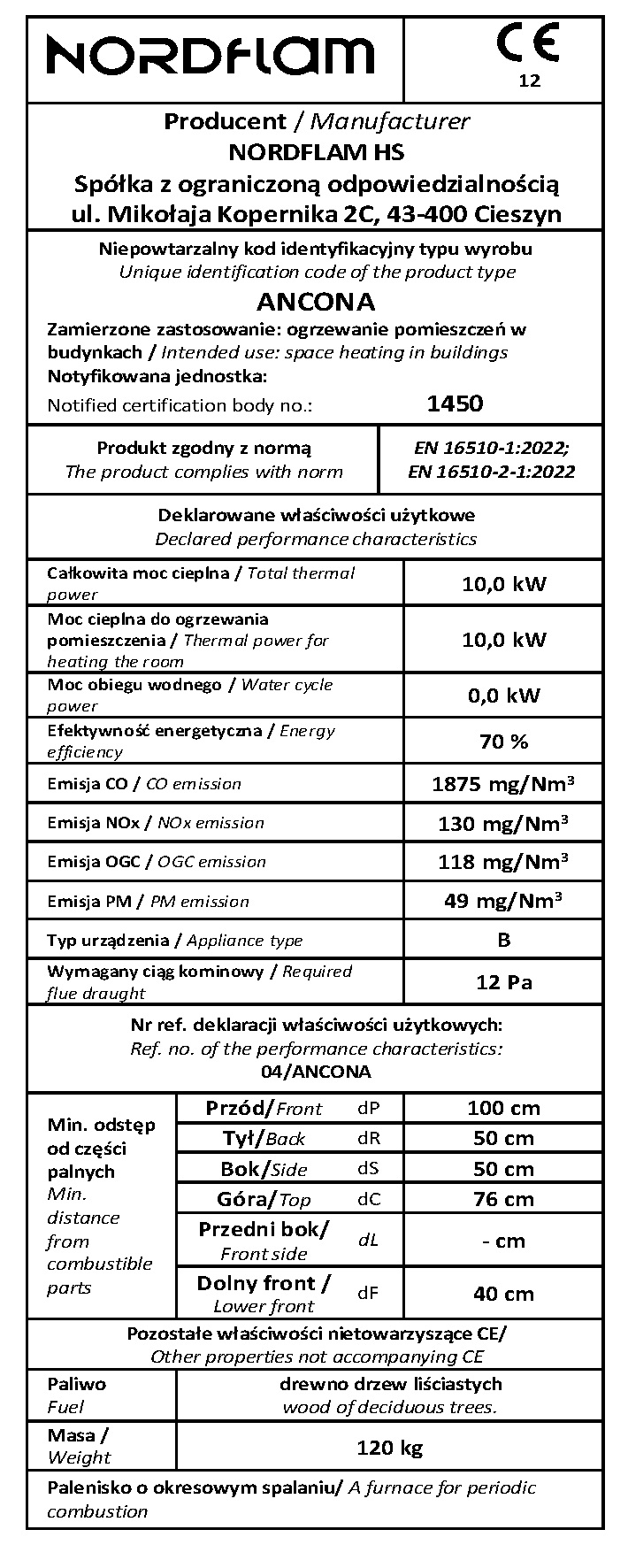

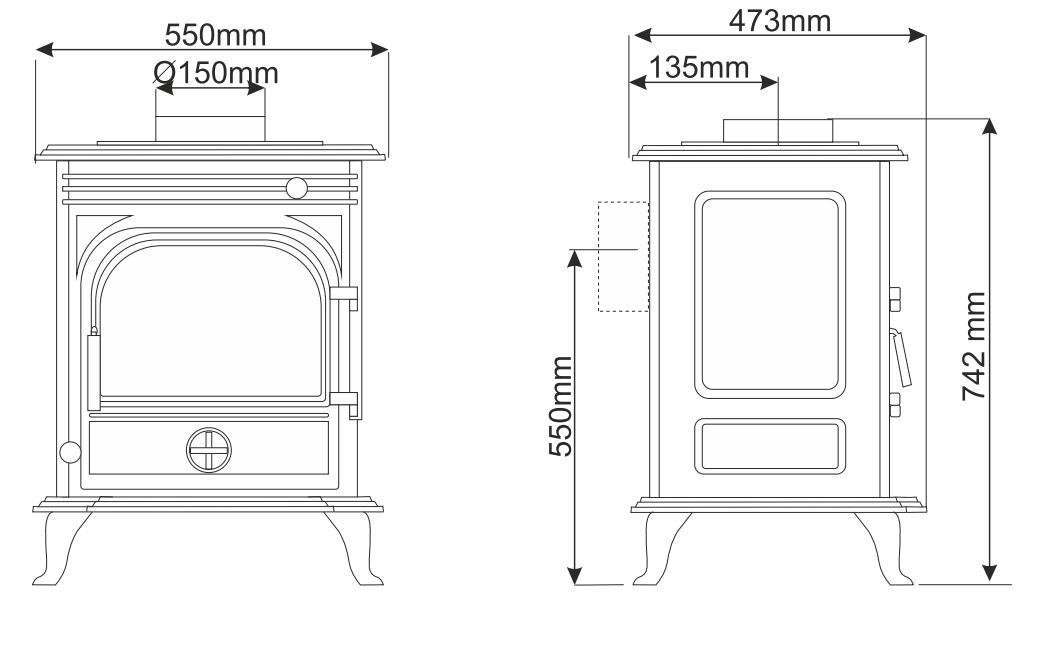

energy efficiency class mechanical drawing
