Products Fireplace inserts Bergamo

Bergamo

Fireplace inserts

Bergamo

Description of the product:
expand roll

NORDflam cast-iron fireplace insert. BERGAMO features a wide furnace that allows for long, wide logs of wood up to 55 cm. Owning to its size, the insert reaches high heating parameters and can heat an area up to 160 m2.

Main parameters:
expand roll
154 kg Weight
16 kW Rated output
180 mm Exhaust outlet diameter
67 % Heating efficiency
0,15 % CO emission at 13% O2
550 °C Exhaust gas temperature °C
160 m2 Heating area (m2)
722x900x465 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class
100 mm External air supply standard – air inlet diameter

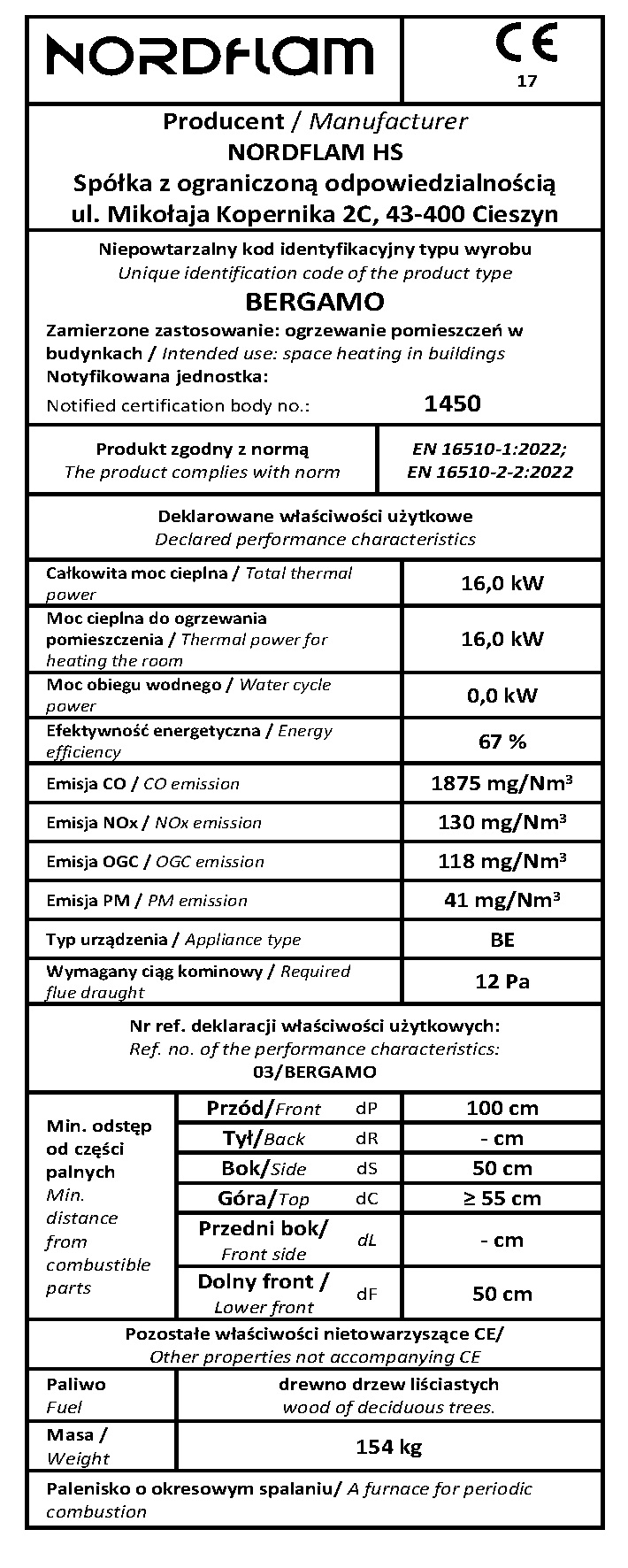

Parameters ECODESIGN
expand roll
58,3 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
40 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet (100 mm diameter) placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Air vent adjusts the chimney draught.
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing
