Roten

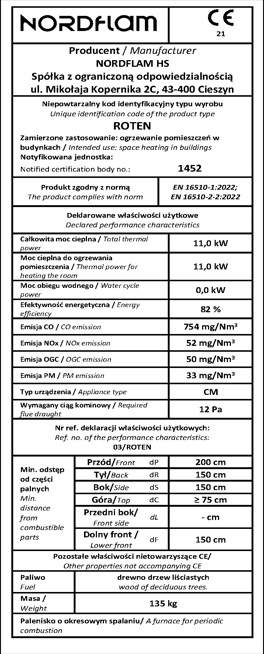

Main parameters:
135 kg
Weight
11 kW
Rated output
150 mm
Exhaust outlet diameter
82 %
Heating efficiency
0,06 %
CO emission at 13% O2
<550 °C
Exhaust gas temperature °C
110 m2
Heating area (m2)
890x630x465 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
steel
Material
A+
Energy efficiency class
5 years
Warranty
100 mm
External air supply standard – air inlet diameter
Parameters ECODESIGN
72 %
Seasonal energy efficiency at 13% O2
50
Organic gaseous carbon (OGC) emission at 13% O2
33
Particle matter (PM) emission at 13% O2
52
Nitrogen oxide (NOx) emission at 13% O2
754
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Furnace lined with fireclay - increases the temperature inside the furnace, improving its parameters and limits the hazardous gases emission into the environment..
Decor glass - glass with black, decorative frame.
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C
Recuperation - Adapted for homes with recuperation systems
