Etna
Fireplace inserts
Fireplace inserts
Etna
Main parameters:
86 kg
Weight
13 kW
Rated output
180 mm
Exhaust outlet diameter
70 %
Heating efficiency
0,16 %
CO emission at 13% O2
370 °C
Exhaust gas temperature °C
130 m2
Heating area (m2)
622x660x350 mm
Dimensions (height, depth, width)
wood of deciduous trees
Fuel type
cast-iron
Material
A
Energy efficiency class
2 years
Warranty
100 mm
External air supply standard – air inlet diameter

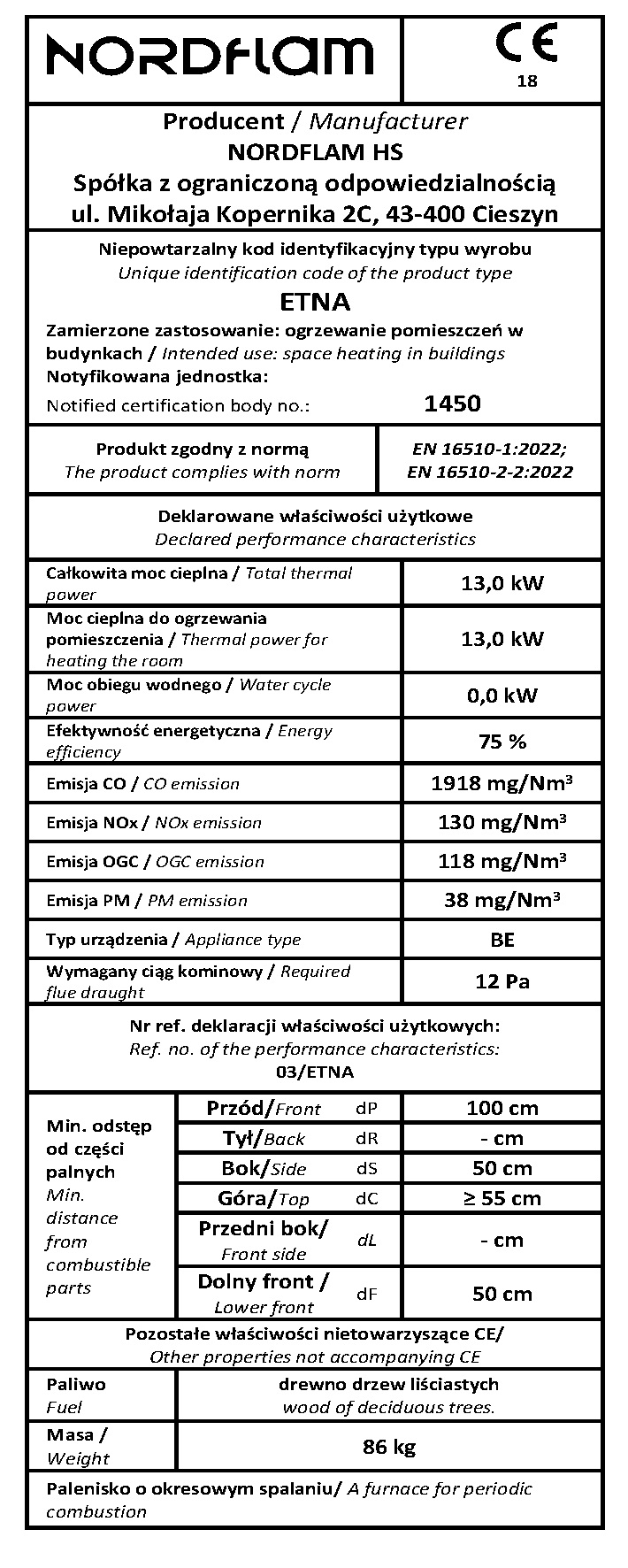

Parameters ECODESIGN
60 %
Seasonal energy efficiency at 13% O2
<120
Organic gaseous carbon (OGC) emission at 13% O2
<50
Particle matter (PM) emission at 13% O2
<200
Nitrogen oxide (NOx) emission at 13% O2
<2000
Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
External air supply inlet (CDP) – External air supply
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Using external air supply system (CDP) enables the insert independently from the indoor air inside the building. The CDP system can adjust the effectiveness of the insert and lower the hazardous gases emission into the environment. The insert with the CDP system can be used in buildings with mechanical ventilation. The air flows into the furnace via the air inlet placed at the back of the base of the insert. The air inlet can be installed under or at the back of the base.
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Grill
Air vent adjusts the chimney draught.
prevents the logs from falling out of the insert
withholds the temperature up to 700 °C
