Iberia

Fireplace stoves

Iberia

Description of the product:
expand roll

Main parameters:
expand roll
140 kg Weight
9 kW Rated output
150 mm Exhaust outlet diameter
68 % Heating efficiency
0,15 % CO emission at 13% O2
390 °C Exhaust gas temperature °C
90 m2 Heating area (m2)
784x626x420 mm Dimensions
wood of deciduous trees Fuel type
cast-iron Material
A Energy efficiency class

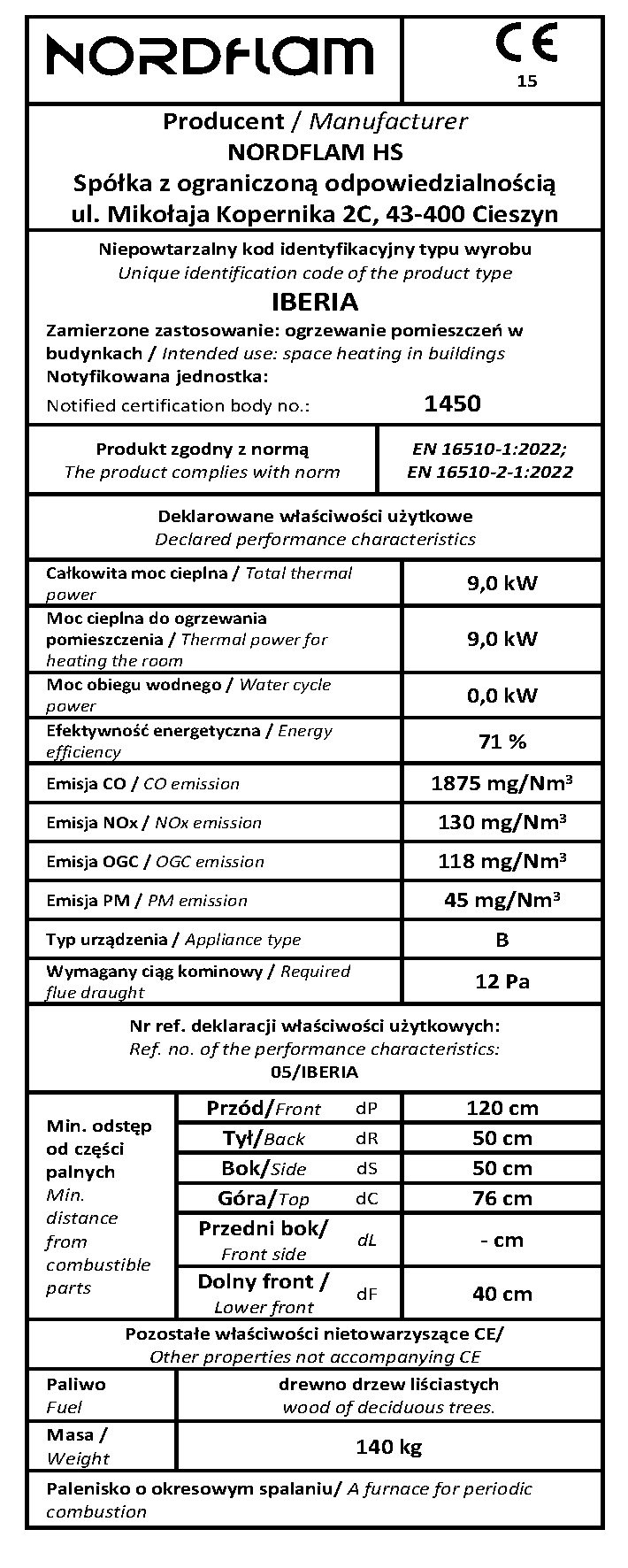

Parameters ECODESIGN
expand roll
58 % Seasonal energy efficiency at 13% O2
118 Organic gaseous carbon (OGC) emission at 13% O2
45 Particle matter (PM) emission at 13% O2
130 Nitrogen oxide (NOx) emission at 13% O2
1875 Carbon Oxide (CO) emission at 13% O2
Additional characteristic:
expand roll
Deflector - extends the way fumes travel inside the device, increases heat emissions and heat efficiency of the product.
Afterburning - reduces hazardous gases emission into the environment
Double side and back walls of the furnace - protect the body of the insert and increases its parameters..
Grill
prevents the logs from falling out of the insert
limits the sooth build up on the inside part of the glass
withholds the temperature up to 700 °C

Download:

energy efficiency class mechanical drawing ecodesign declaration
